PLC controlled PET plastic steel belt production line PET extrusion equipment PET strapping equipment with green PET belt

SHENZHEN JIATUO PLASTIC MACHINERY CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

PLC controlled PET plastic steel belt production line PET extrusion equipment PET strapping equipment with green PET belt

  • 1
  • 2
  • 3

Brand Name : JIATUO CHINA

Model Number : JTPET

Certification : IS CEO

Place of Origin : CHINA

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C, T/T

Delivery Time : 60-70days

Packaging Details : plastic film

Raw material : bottle flake material, 100% broken material

Control System : PLC

Inverter : INVT

production capacity : 400-600kgs/H

Width rang : 9-32mm

Product Name : PET Strap Making Machine

Strap Tension : 150-850kg

Thickness : 0.6-1.2mm

Paper tube size : 406*150mm

Winder method : manual/automatic

equipment power : 300kw

Numbers of straps : 4

Contact Now

PLC controlled PET plastic steel belt production line PET extrusion equipment PET strapping equipment with green PET belt

Product Description of PET plastic steel belt production equipment:

PET plastic steel belt production line features:

1. Extrusion process--------PET tape making machine uses a special screw for extruder, which is evenly extruded by heating and melting.

2. Cooling and solidification------- The extruded PET tape embryo is then cooled and solidified using a cooling water tank or other refrigerator to ensure that the material maintains its shape and characteristics.

3. Stretching and orientation------- PET tape making machines usually include stretching and orientation sections to improve the tensile strength, flexibility and overall performance of the PET tape. This process aligns the molecules in the PET material to enhance its mechanical properties.

4. Embossed--------PET strap making machines may have an embossing section that creates a textured or patterned surface on the PET strap to improve grip and aesthetics.

5.Winding and Cutting------After producing the PET strap, the machine typically includes a winding and cutting mechanism to roll the strap into coils of the desired length for packaging and distribution.

6.Adjustable Parameters------ PET strap making machines typically offer PLC adjustable parameters such as strap width, thickness, color, and tension to customize the strap to specific requirements.

PLC controlled PET plastic steel belt production line PET extrusion equipment PET strapping equipment with green PET belt

Technical Parameters of PET plastic steel belt production equipment:

Model PET-2 PET-3 PET-4 PET-6 PET-8
Raw materials 100% Bottle flakes/crushed materials
Number of tapes 2 3 4 6 8
Width (mm) 9-32
Thickness (mm) 0.4-1.2
Maximum line speed(m/min) ≧150 ≧150 ≧150 ≧150 ≧150
Screw Model 90 100 125 150 180
Reducer model 200 250 280 315 350
Dehumidifier 1000 1000 2000 3000 3500
Metering Pumps 100CC
Production capacity /24 H 5-6T 7-8T 10-12T 12-15T 18-20T

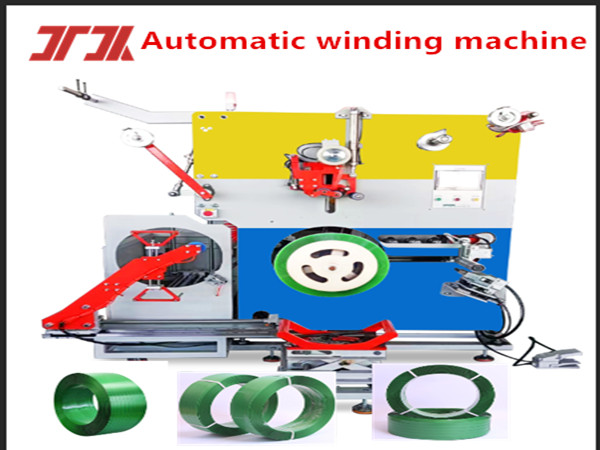

Automatic PLC Controlled Double-Position PET/PP Strap Winder

Automatic PLC controlled single station PET/PP tape winder, this PP PET winder is suitable for tapes with extrusion speeds up to 180-250 m/min. Each machine is equipped with a reel. The machine is equipped with a reinforced tension arm to control the winding tension. The inclinometer fixed on the reinforced tension arm converts the physical position signal of the tension arm into an electrical signal and sends it to the programmable logic controller (PLC). After data processing, the PLC controls the running speed of the winding motor and drives the paper tube fixed on the winding shaft to evenly wind the tape with constant tension.

The winding process does not require manual operation, and there is no need to replace the transmission gear.

Automatic winding, automatic rewinding, automatic stop, and automatic roll change.

PLC controlled PET plastic steel belt production line PET extrusion equipment PET strapping equipment with green PET belt

Services :

After-sales service

Our PET plastic steel belt equipment provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:

Pre-sales:

1. Layout of PET plastic steel belt equipment.

2. Analysis of finished product manufacturing costs of PET plastic steel belt equipment.

3. Analysis of raw materials used in PET plastic steel belt equipment.

After-sales service:

1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET plastic steel belt equipment.

2. Installation, commissioning and training of PET plastic steel belt equipment.

3. Maintenance service of PET plastic steel belt equipment.

4. Regular maintenance and repair

5. Fault diagnosis

6. Software update and upgrade

7. Spare parts and accessories

8. Training and technical consultation

PLC controlled PET plastic steel belt production line PET extrusion equipment PET strapping equipment with green PET belt

FAQ:
  • Q: What is the Brand Name of this PET Strap Making Machine?
    A: The Brand Name is JIATUO CHINA.
  • Q: What is the Model Number of this PET Strap Making Machine?
    A: The Model Number is JTPET.
  • Q: Where is this PET Strap Making Machine made?
    A: This PET Strap Making Machine is made in CHINA.
  • Q: What is the Certification for this PET Strap Making Machine?
    A: This PET Strap Making Machine has IS CEO Certification.
  • Q: What is the Minimum Order Quantity for this PET Strap Making Machine?
    A: The Minimum Order Quantity is 1 SET.
