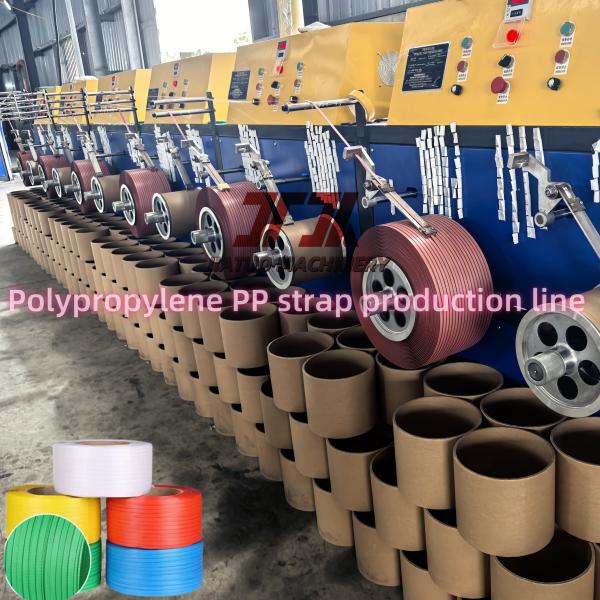

Twin Screw PP Strap Production Machine with 230-260Kg/h Capacity for Sandwich Straps Using PP Recycled Material

Brand Name : JIATUO CHINA

Model Number : JTPP-110/75

Certification : ISO CE

Place of Origin : CHINA

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 50set/month

Delivery Time : 50-60days

Packaging Details : Plastic film

Number of strap : 2/4/6/8/10/12 straps

Thickness(mm) : 0.3-1.2mm

Width : 5-19mm

Production capacity : 230-260Kg/h

Screen changer : Automatic or Manual

Screw model : 110/75mm

Production material : PP Recycled Material

Screw design : Double-screw 110mm 75mm

Motor : GUGAO

Inverter : INVT

Control systems : PLC Chinese/English control system

Warranty : 1 years

Final production : PP core-spun packing belt (2 mould for 2 straps)

Total install power : 80kw, (actual power consumption is 40-50%)

Application : Ceramics, furniture, cartons

Contact Now

Twin Screw PP Strap Production Machine Make Sandwich Strap Use For Ceramics Furniture

Twin Screw PP Strap Production Machine Make Sandwich Strap Use For Ceramics Furniture

PP Sandwich Belt Production Machine Description

The PP sandwich belt making machine consists of a main host and auxiliary units, equipped with 2 feeders and 2 material barrels; other components remain the same.

Sandwich belts are widely used in ceramic factories. They adopt a composite structure: high-quality material for the outer layer and recycled material for the inner core.

Our twin-screw PP strap making machine features versatile functions. It can produce both single-layer and double-layer straps to meet diverse customer requirements.

General Parameters of PP Strap Making Machine
Model Output Strap Quantity Strap Width Raw Material
JT-PP90 100-120Kg/h 2 straps 5-19 mm 100% PP recycled material & new raw material
JT-PP110 230-260Kg/h 4 straps 5-19 mm
JT-PP125 350-380Kg/h 6 straps 5-19 mm
Process Flow of PP Packing Belt Production Line
  1. Feeding
  2. Mixing material
  3. Pre-drying
  4. Melting and measuring extrusion
  5. Embryo (belt embryo) cooling and forming
  6. Oven pre-heating
  7. Primary stretching
  8. Secondary stretching
  9. Embossing
  10. Oven tempering and setting
  11. Cooling
  12. Finished product winding

Tip: If you choose printing, you can print first and then emboss in step eight.

Components of Polypropylene Strap Production Machine
  • Main machine and auxiliary machine: Twin-screw extruded sandwich strapping band, higher tensile strength and more cost-effective.
  • Mold: Independent designed die head, manufactured by large CNC machining centers. Higher precision and more uniform extrusion effect.
  • Five roll wheel: The five rollers are hard chrome plated, featuring higher hardness and longer service life.
  • Double station winder: Easy operation and higher winding efficiency.
Twin Screw PP Strap Production Machine with 230-260Kg/h Capacity for Sandwich Straps Using PP Recycled Material
Frequently Asked Questions
Q: What voltage is applicable?
A: Customizable according to different countries, such as 380V/50Hz, 415V/50Hz, 220V/60Hz, etc.
Q: Do you provide installation and training?
A: Yes, we provide overseas installation, commissioning, and operator training.
Q: Can 100% recycled material be used?
A: Yes, but the strength will decrease. It is recommended to mix with new material or use for inner layer of sandwich strap.
Twin Screw PP Strap Production Machine with 230-260Kg/h Capacity for Sandwich Straps Using PP Recycled Material
